Industrial 4 Port SFP Fiber Switch Gigabit 1 SFP Slot and 4 Ethernet Ports
Technical parameters
| Switching capacity | 14Gbps |
| Cache | 1Mbit |
| MAC address table | 2K |
| Max frame length | 9216bytes |
| Electrical Specifications |
| Input voltage | DC12-58V(Non-PoE), DC48~58V(PoE) |
| Power consumption | <4.8W(Non-PoE) |
| Voltage Alarm | Support |
| IP level | IP40 |
| Surge protection of Power | IEC 61000-4-5 Level X (6KV/6KV) (8/20us) |
| Surge protection of Ethernet port | IEC 61000-4-5 Level 4 (4KV/4KV) (10/700us) |
| ESD | IEC 61000-4-2 Level 4(8K/15K) |
| Free fall | 0.5m |
| Environment |
| Operating temperature | -40℃~ +85℃ |
| The device is tested for 4 hours at temperatures in 85℃ |
| Storage temperature | -40℃~ +85℃ |
| Relative humidity | 5%~95% (Non-condensing) |
| Accessories | Equipment, Terminals, Instruction, Certificate, Power adapter(optional) |
Product overview
The industrial 4 port SFP fiber switch is full gigabit 1 SFP slot and 4 ethernet ports, it adopts industrial-grade design solution, through Electro-optical technique conversion, it can transfer data signal by different transmission media of twisted pair and fiber in new high-speed Ethernet network, multi-channel of HD 1080P network signals can be transferred without delay, it can meet the user’s requirements of long range transmission and high-speed transmission, the max high-speed transmission distance of HD network signals can reach 100Km without repeater, it also can be connected with other network devices. Din rail style and desktop style for installation are provided, it supports wide range of power input, power with positive and negative protection, ultra wide range of operating temperature (-40~85℃), IP40 shell protection. The equipment can be used in combination with HD network integrated multi-port fiber switch to compose a large HD networks transmission system for easy control, it is an ideal device over fiber transmission for CCTV security, Telecommunications, Broadcasting, Network applications, suitable for roads, factories and mines, rail, traffic and other network scenario.
Product features
◆ Industrial-grade surge protection 3000V (power)
◆ To provide low delay of data transmission.
◆ Support 9216bytes the long packet transmission.
◆ Adaptive parallel line / crossover cable connection
◆ Guide rail type installation, easy and quick installation;
◆ Support DC44V~DC57V dual redundant power input;
◆ Industry-standard design, IP40 shell protection
◆ Built-in United States Marvell industrial-grade network switching chips, performance is stable and reliable
◆ Automatically compatible with IEEE802.3, IEEE802.3U, IEEE802.3X network protocols
◆ Supports full duplex and half duplex transfer modes, and with auto-negotiation skills
◆ Support the MDI/MDI - X adaptive, inside take a store-and-forward mechanism.
◆ Built-in efficient exchange core, the broadcast storm, flow control, CRC error checking.
◆ Power overload protection, positive and negative anti-reverse connection protection;
◆ Industrial product standard, working temperature -40℃ ~ 85℃, protection grade IP40;
◆ Power port support POE function, construction is more convenient.
◆ Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be about 250M.
◆ Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.

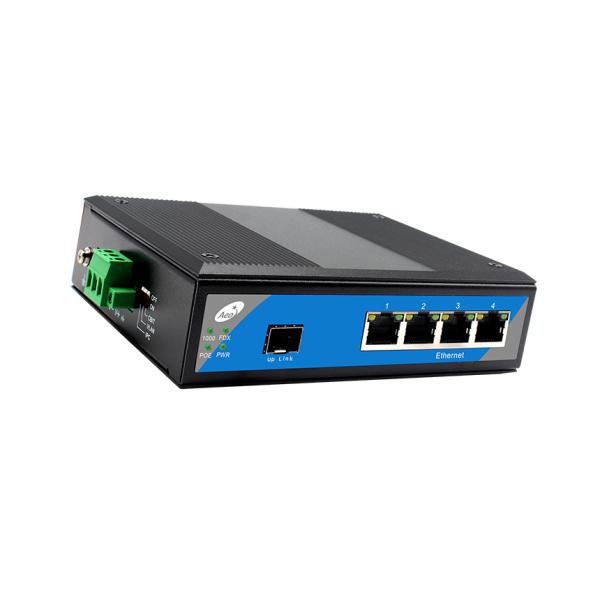

Product Pictures
Application Diagram
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
